Another mobile tracked heavy duty screener is nearly finished with assembly!

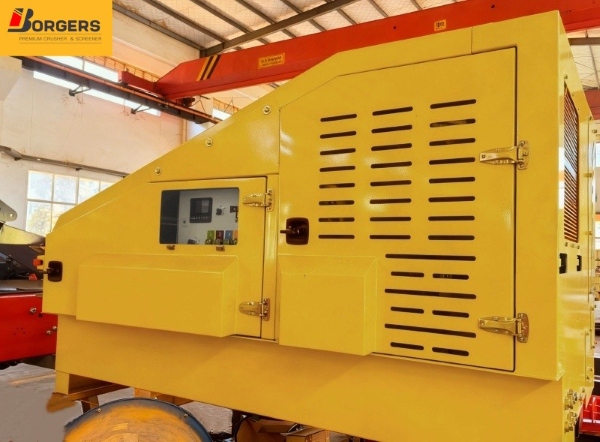

⭐Engine Power: Cat C4.4/83 Kw

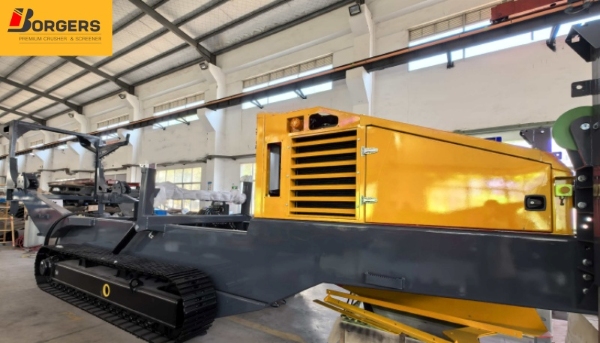

⭐Frame: Wear-resistant steel.

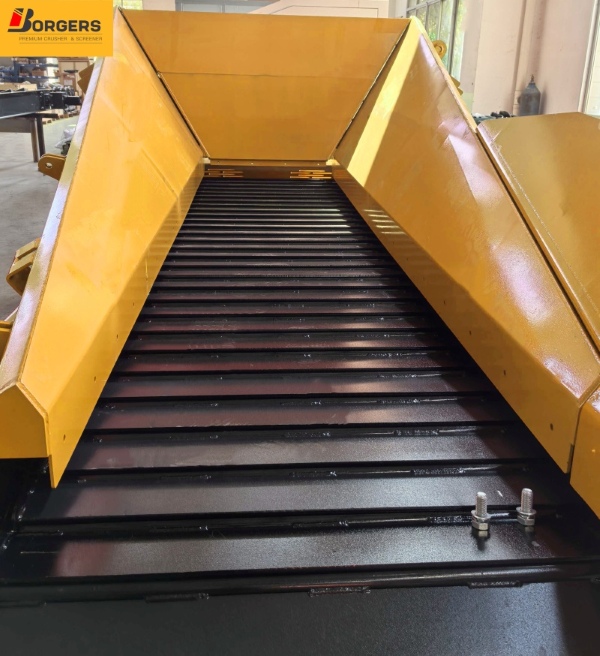

⭐Hopper capacity (expandable): 6m³–8m³.

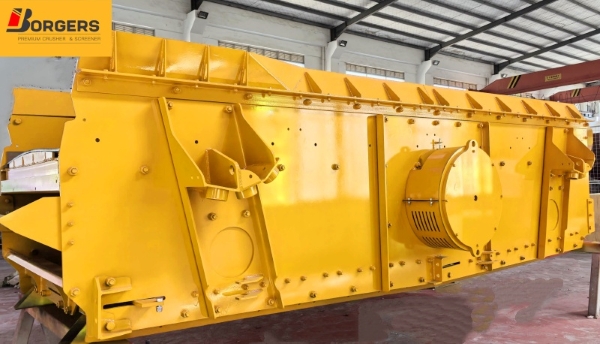

⭐Screen-box bearing: NSK

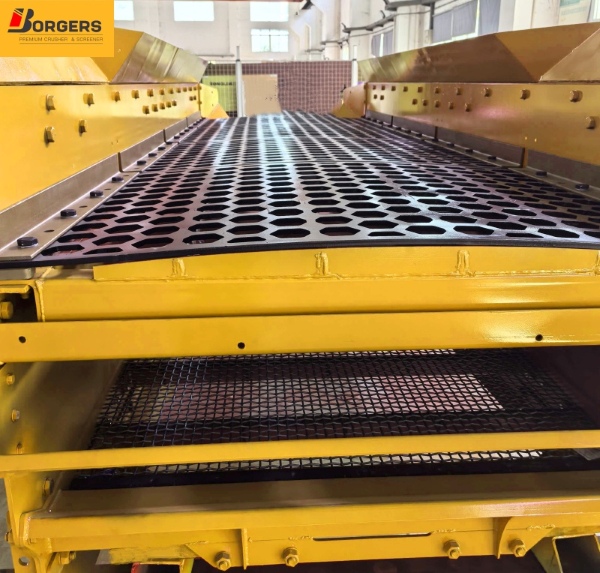

⭐Two decks: The top deck is 4.8m x1.5m, and the bottom deck is 4.8m x1.5m. Screen decks can choose: Borfor Bar, tines plate, punch plate or wire mesh.

⭐The screen box angle: 18°to 20°

⭐Conveyors:

1.Hydraulic discharge angle adjustment / folding for transport.

2.Variable speed control.

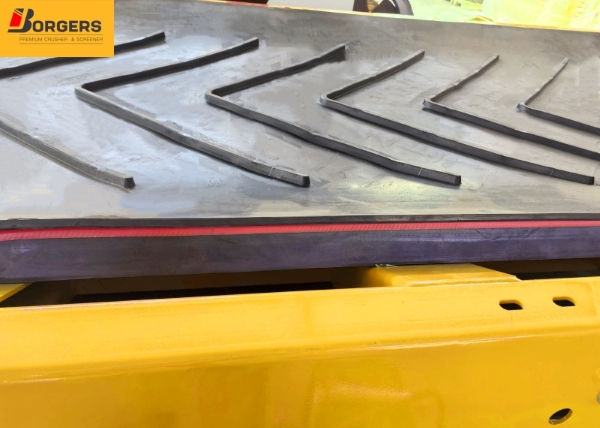

3.Large and medium conveyor fitted with chevron belt.

4.Heavy duty impact rails.

⭐High screening rate: 95%

⭐The Max. Capacity : 500tph

⭐The Max. Feed Size: 500mm

⭐Transport Dimension:14700*3000*3400m. Compact transport dimensions.

For more information about Borgers mobile tracked heavy duty screener and services, please visit our official website or contact Borgers service team.
